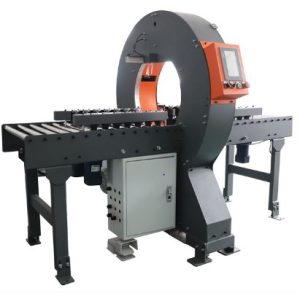

Horizontal Fully Automatic Stretch Wrapping Machine S 600 – 150
- LOAD STABILITY compared to manual packing
- Same look of packed cargo
- NO DAMAGED cargo during transportation
- EASY TO OPERATE control panel
- SAFETY IN OPERATION – designed to provide the highest protection during operation
- Horizontal type wrapping long products, such as wooden, pipe…
- Electronic control system – Siemens
- Motor reducers, drive system – SEW
| Модел S 600 150 | |
| Max. wrapping size | Ø 400 mm / Ø 600 mm |
| Ring diameter | Ø 600 mm / Ø 800 mm |
| Min. product length | 500 mm |
| Maximum loading weight | Max. 200 kg |
| Working height | 500 – 1000 mm |
| Motor-driven | 0,75 KW |
| Put film & cut film | Automatic |
| Film width | 150 mm |
| Max. film diameter | Ø 200 mm |
| Control | PLC |
| Machine weight | 400 kg |
| Diemensions | L 4718 x W 1503 x h 1790 mm |
| Voltage | 380V / 220V / 50 HZ |

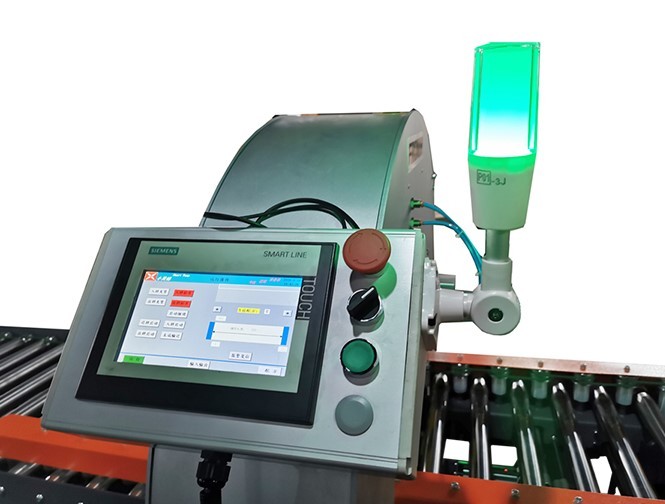

Intelligent Touch Operating System
Intuitive, easy to understand,has nothing to do with language and skills.

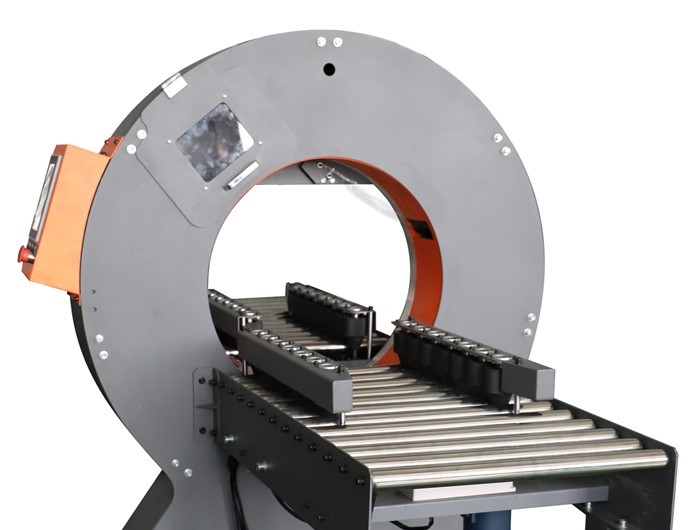

Aluminum Ring System with Double Film Carriage
Aluminum Ring with lightweight high speed, and machine with 2 film carriage so the wrapping speed more faster. 150mm film width and thin ring thinkness ,the minmum length can reach 500mm

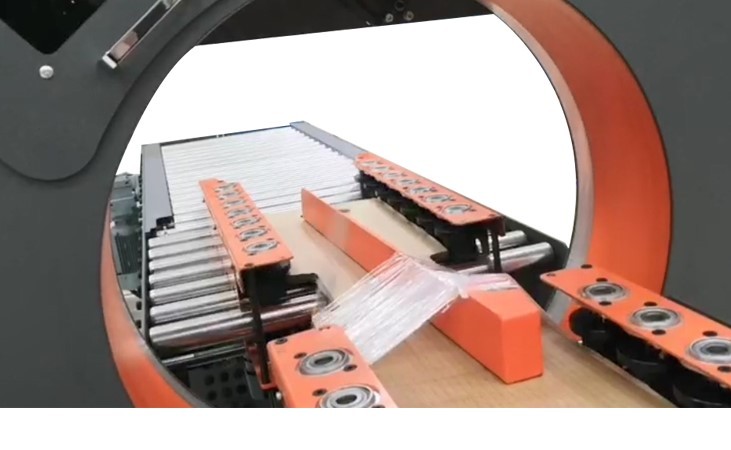

Automatic cutting and clamping film
Fully automatic cutting and clamping film, it’s more convenient for the operator to use the machine, and improves working efficiency.
