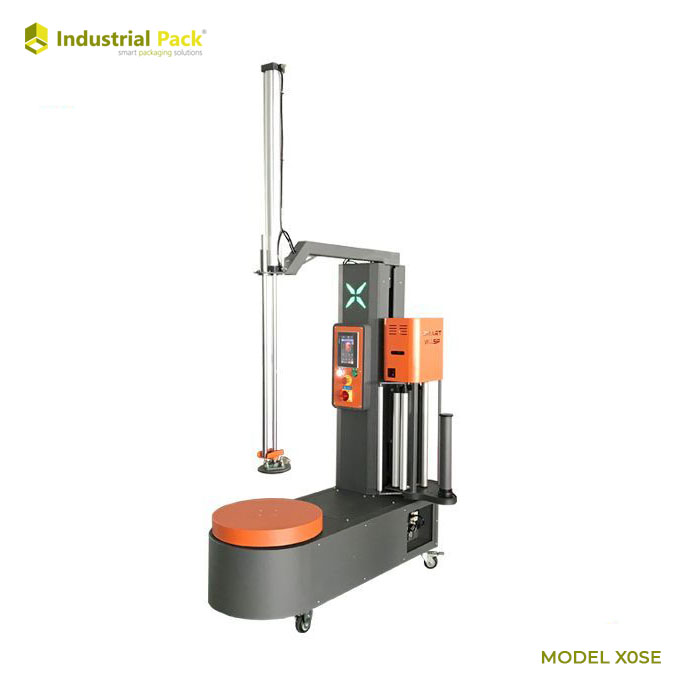

Semi-Automatic pallet wrapping machine – model XOSE
| Model | X0se |
| Turntable size | Ø 500 mm |
| Column height | 1280 mm |
| Pre stretch | 250% |
| Turntable speed | 0-20r/min |
| Up / down speed | 6m/min |
| Load weight | 50kg |
| Top pressure length | 800 mm |
| Top pressure diameter | Ø 250 mm |
| Total power | 1,2 KW |
| Voltage | 220 V |
| Air pressure | 6 Pa |
| PLC | X line |
| Inverter | X line |
| Sensors | Omron |
| Dimensions | 1357*765*2565mm |
Intelligent Touch Operating System
X-Line Touch Screen: our airport luggage wrapping machine is intuitionistic, easy to understand and operate.
- X-line IoT Technology: Intuitionistic, easy to operate.
- 250 % Pre-stretch Rate: The film can be stretched from 1m to 3.5m by our wrapping machine, which can more save cost.
3. Photoelectric sensor: Through the height of photoelectric sensor induction wrapping, more intelligent and faster.
Pre stretch carriage
Pre stretch ration 250 %
Film force controlled by touch screen panel
Weighing Scale
The weighing device of the Airport Luggage Wrapping Machine is optional and can be equipped according to customers’ requirements. Help users know the weight of each case exactly.
Top Pressure Plate
Top pressure plate hold the pallet, suit for unstable boxes or cases.
