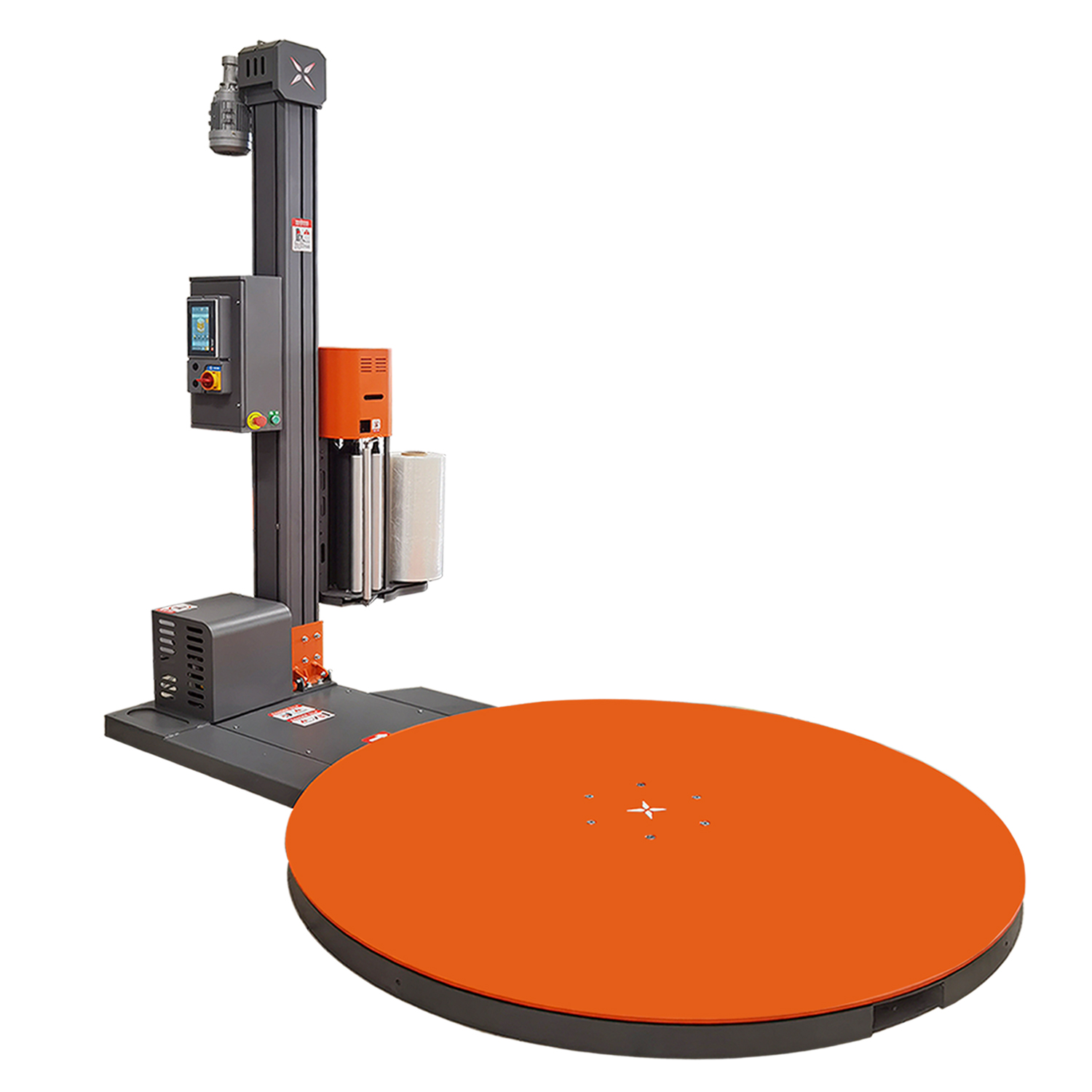

Semi-Automatic pallet wrapping machine – X0
3 years warranty
- STABILITY of the load compared to manual packing
- SAME appearance of packed cargo
- NO DAMAGED cargo during transportation
- USER-FRIENDLY control panel
- SAFETY AT WORK – designed to provide the highest protection during operation
- LED three-color light
| Model | X0ms | X0ms-MT | X0ps | X0ps-M |
| Essential Parameter | Mechanical Stretch | Mechanical Stretch+M turntable | Pre-stretch | Pre-stretch+M Turntable |
| Machine size (mm) | 2435 x 1650 x 2424 | 2797 x 1722 x 2419 | 2435 x 1650 x 2424 | 2797 x 1722 x 2419 |
| Machine weight | 530 kg | 530 kg | 550 kg | 550 kg |
| Voltage | 220 V | |||
| Machine power | 1,2 KW | 1,2 KW | 1,5 KW | 1,5 KW |
| Load weight | 1500 kg | 800 kg | 1500 kg | 800 kg |
| Turntable speed | 0 – 12 rpm | |||
| Up&down speed | 0 – 5,9 m/min | |||
| Packing height | 2000 / 2400 / 2800 mm | |||
| Turntable height | 81 mm | |||
| Turntable size | 1500 / 1650 / 1800 / 2000 / 2200 / 2400 mm | |||
| Pre-stretch rate % | – | – | 250 | 250 |
| Film Width | 500 mm | |||
| Film paper Core | Ø 76 mm | |||
| Certificat | CE | |||
| Control | ||||
| Soft start/stop | ✓ | ✓ | ✓ | ✓ |
| Intelligent Alarm | ✓ | ✓ | ✓ | ✓ |
| Stop at original | ✓ | ✓ | ✓ | ✓ |
| Turntable lock | – | – | – | ✓ |
| PLC | PCB Integrated Circuit Plate | |||
| Inverter | ✓ | |||
| Sensors | SICK | |||
| Touch screen | SMART WASP | |||
| Motor | ||||
| Optional | ||||
| Top Pressure | ✓ | ✓ | ✓ | ✓ |
| Ramp | ✓ | ✓ | ✓ | ✓ |
| Weighing scale | ✓ | ✓ | ✓ | ✓ |

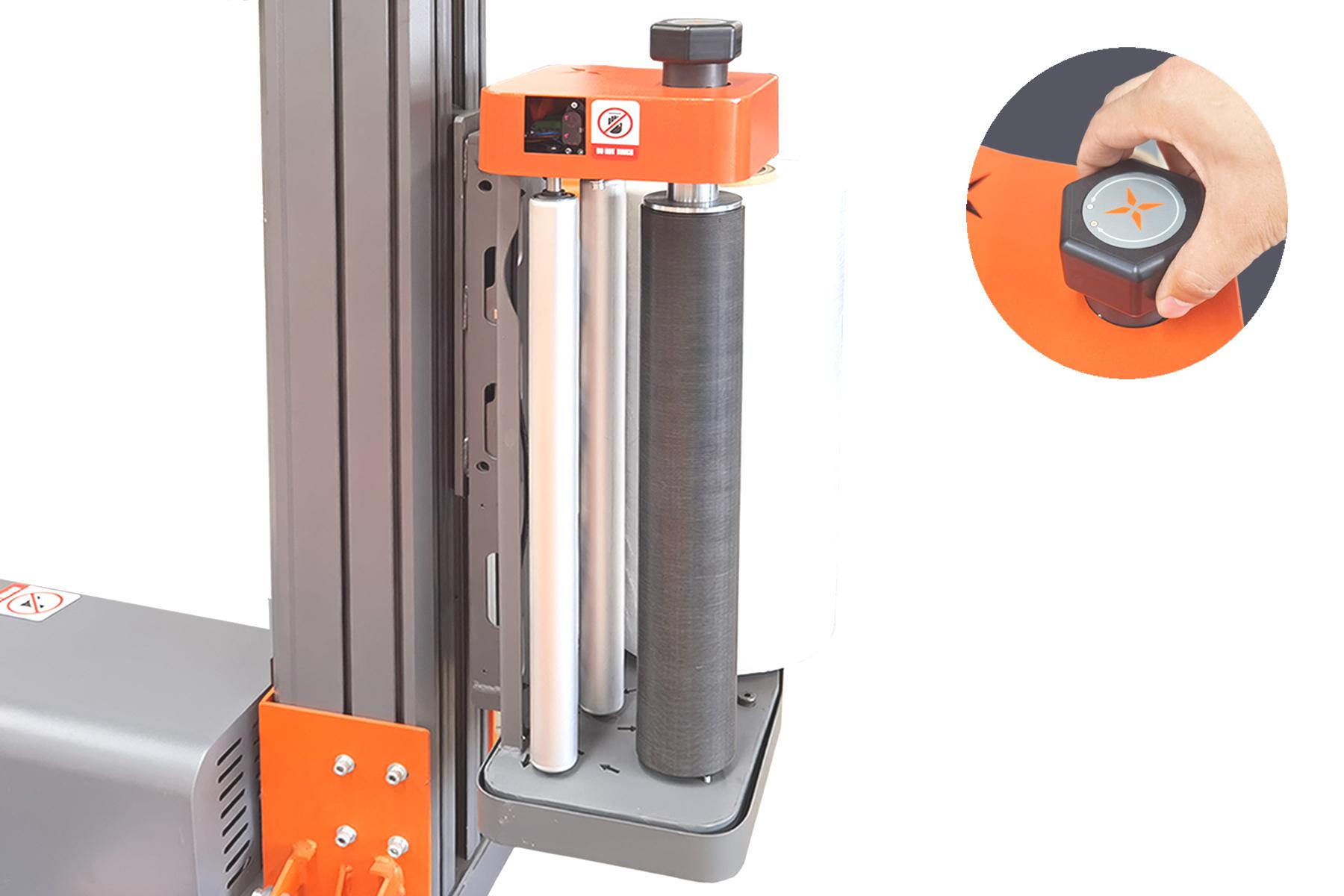

New generation of mechanical brake film carriage
Ergonomic handle for precise film tension adjustments.

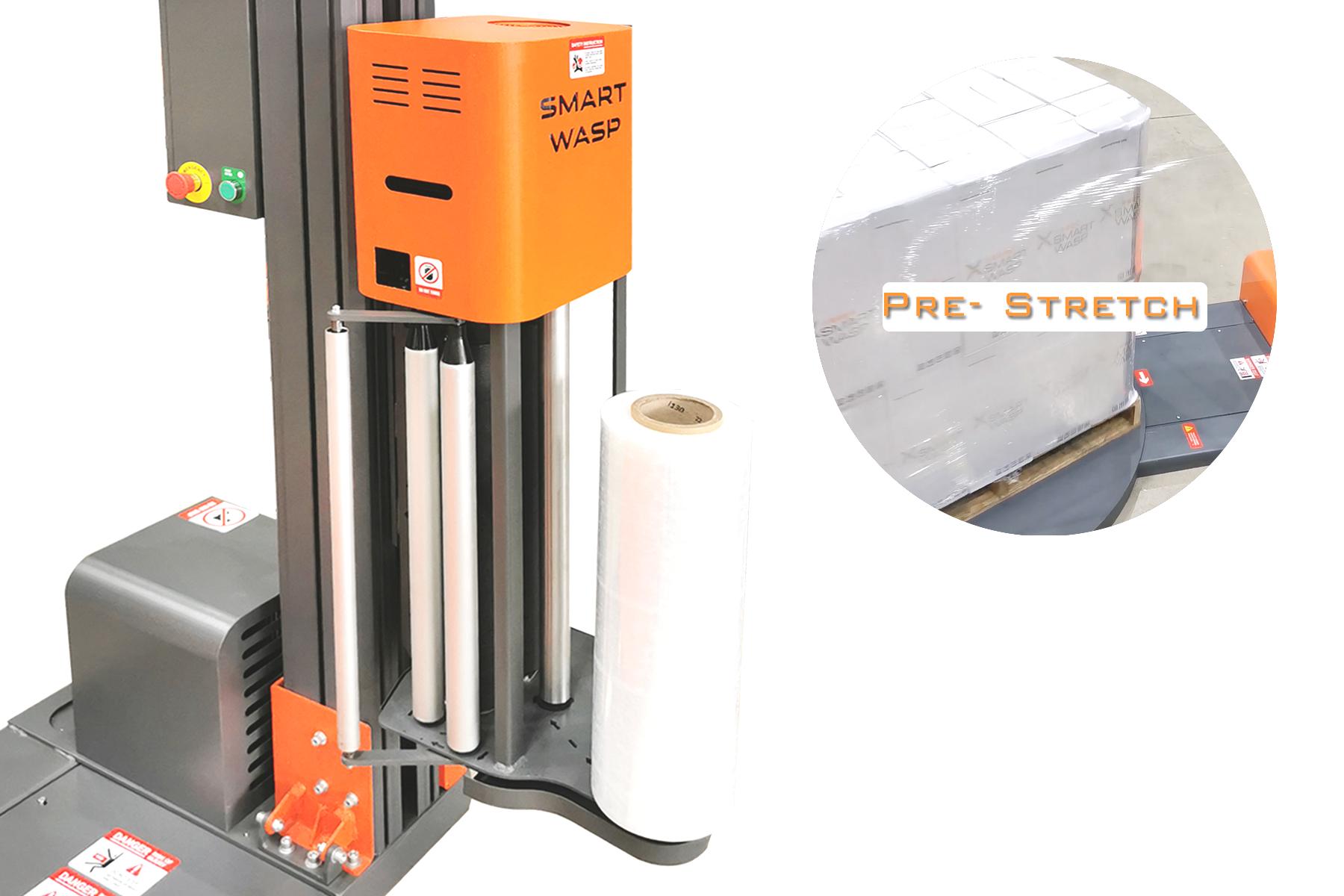

Cost-saving pre-stretching film carriage
The touch screen precisely adjusts the wrapping tension
The maximum pre-stretching ratio can reach 350%, saving the amount of wrapping film

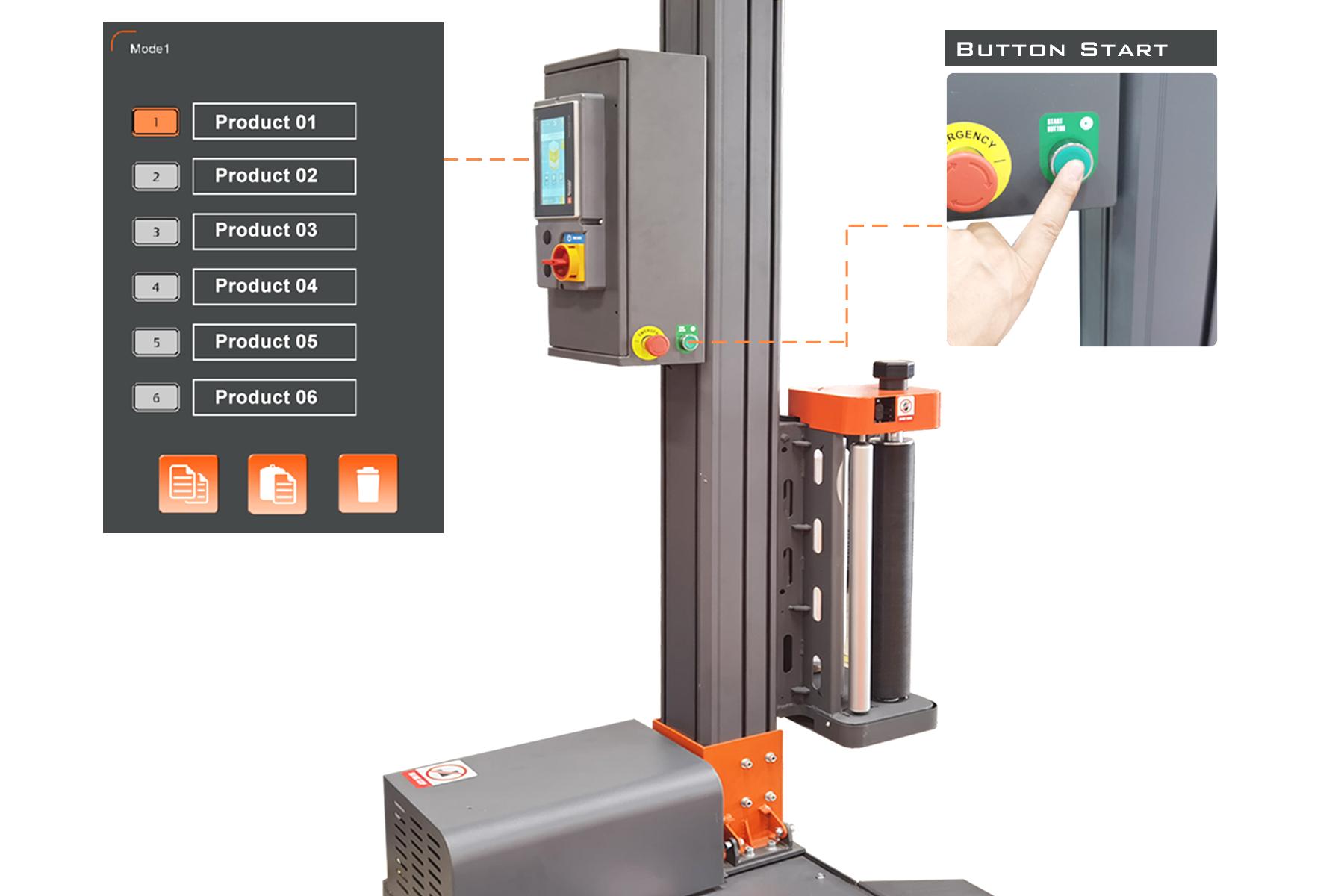

6 Memory Functions
Six kinds of wrapping memory function, make parameter setting easier

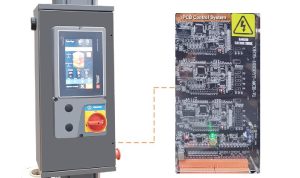

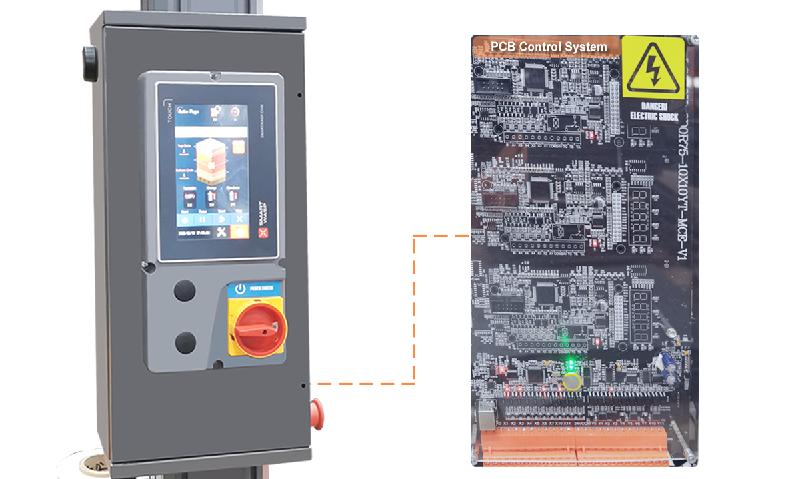

PCB control system
Four independent chips control, stronger operation and longer life
Integrated circuit system, maintenance is more convenient
Aluminum Column + Lifetime Warranty
4000 tons extruded column, integrally formed, solid and durable
Modular assembly, easy to install
Double chain lifting system, more safety

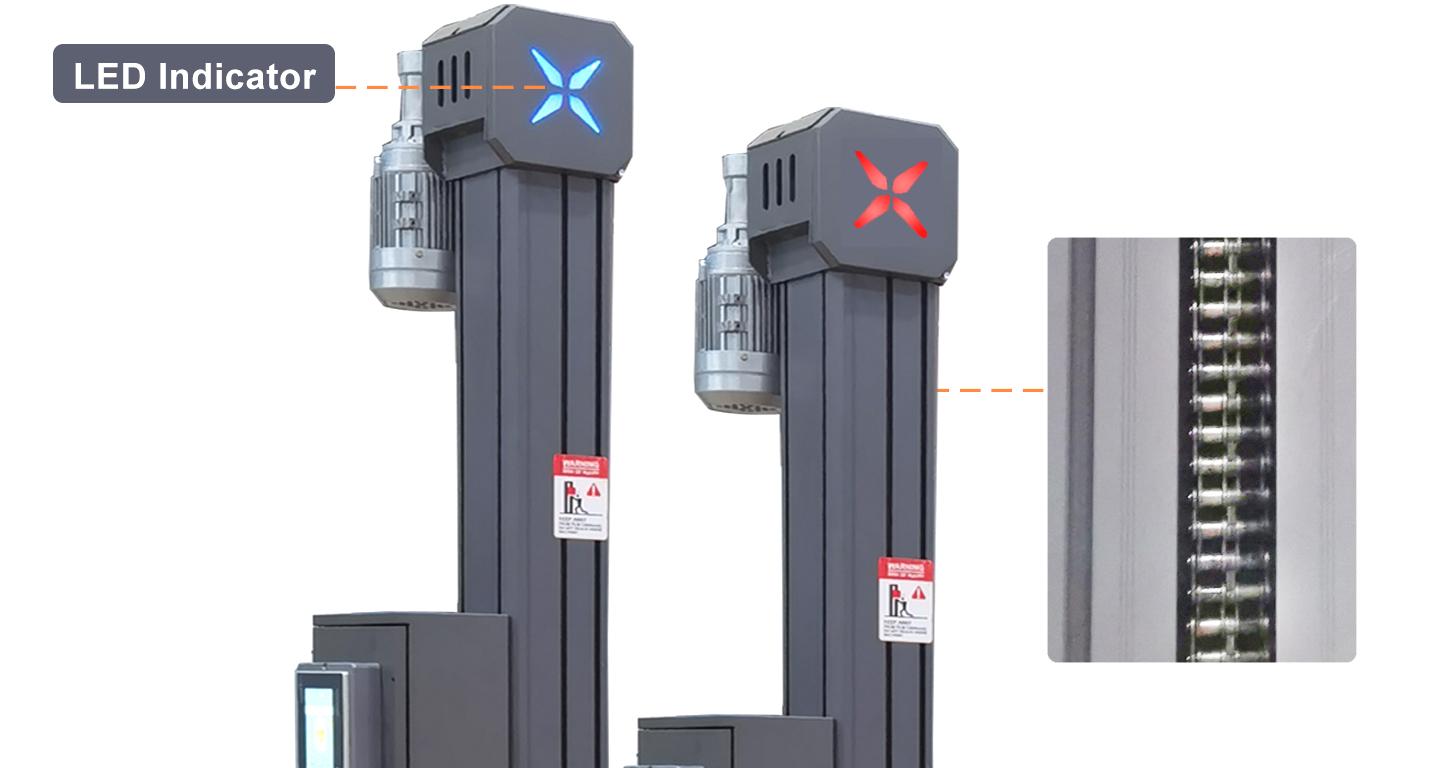

LED three-color light
