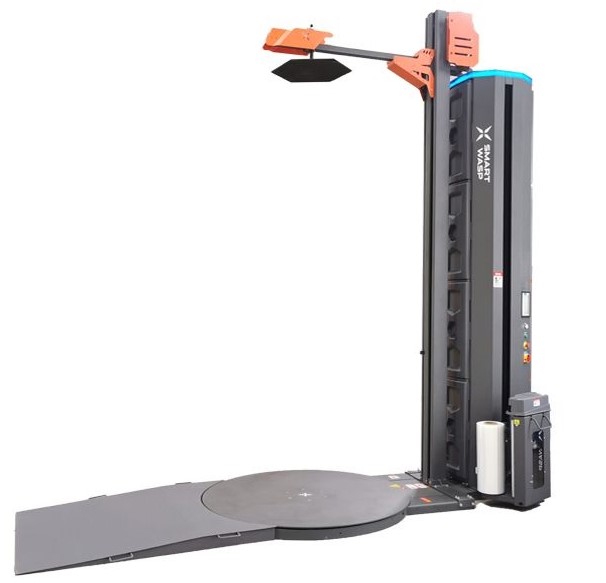

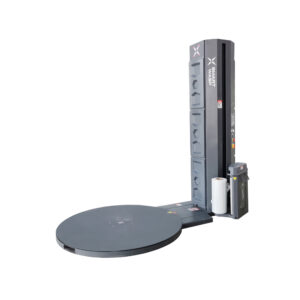

Semi-Automatic pallet wrapping machine – X1
- STABILITY of the load compared to manual packing
- SAME appearance of packed cargo
- NO DAMAGED cargo during transportation
- USER-FRIENDLY control panel
- SAFETY AT WORK – designed to provide the highest protection during operation
- LED three-color light
- Automatic platform positioning
- Film tension control
- Carriage movement control up/down
- Soft start/stop
- Suitable for heavy pallets, maximum weight up to 2000 kg.
| Model | X1 | X1M |
| Essential Parameter | Pre-stretch | Pre-stretch+M Turntable |
| Machine size（mm) | 2800 x 1800 x 2650 mm | 2800 x 1800 x 2650 mm |
| Machine weight | 800 kg | 800 kg |
| Machine power | 1,5 KW | 1,5 KW |
| Voltage | 220 V | |
| Load weight | 2000 kg | 800 kg |
| Turntable speed | 0 – 12 rpm | |
| Up&down speed | 1,5 – 5,9 m/min | |
| Packing height | 2400mm/2800mm optional | |
| Turntable height | 81 mm | |
| Turntable size | 1500 / 1650 / 1800 / 2000 / 2200 / 2400 mm | |
| Pre-stretch rate % | 150 %; 200 %; 250 % | |
| Cut film | Automatic | |
| Film Width | 500 mm | |
| Film paper Core | Ø 76 mm | |
| Certificat | CE | |
| Soft start/stop | ✓ | ✓ |
| Intelligent alarm | ✓ | ✓ |
| Stop at original | ✓ | ✓ |
| PLC | SIEMENS | |
| Inverter | ✓ | |
| Sensor brand | SICK | |
| Touch screen | X-LINE | |
| Motor | ||
| Pallet grip system | ✓ | ✓ |

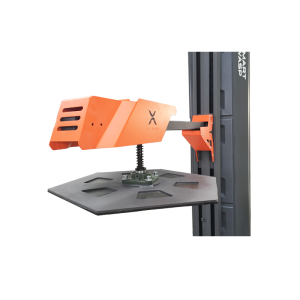

| Top pressure | ✓ | ✓ |
| Weight scale | ✓ | ✓ |

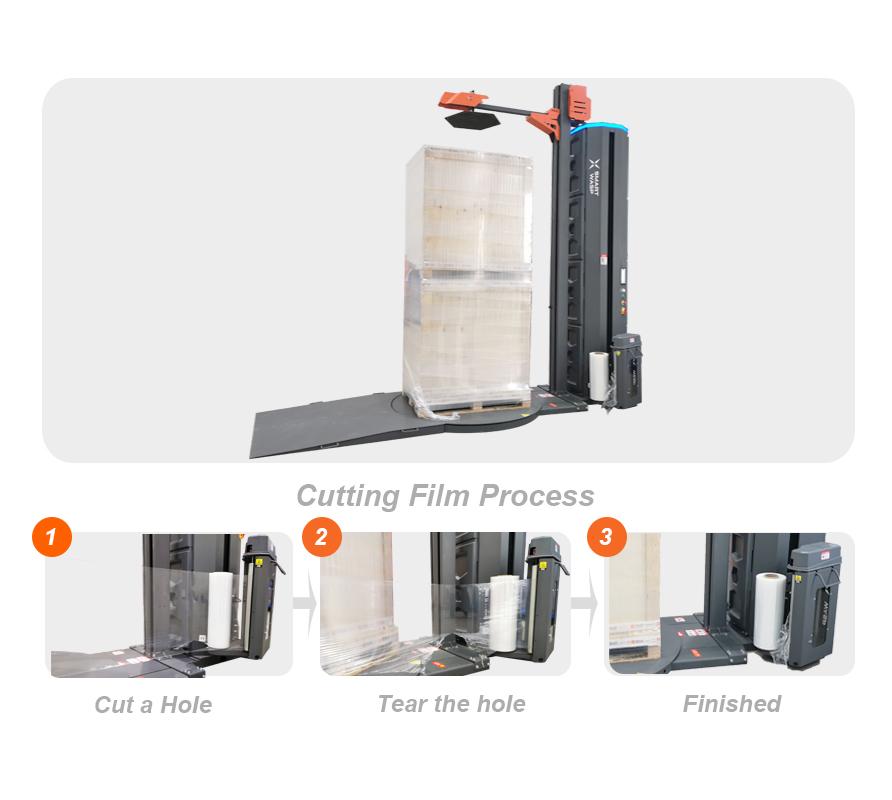

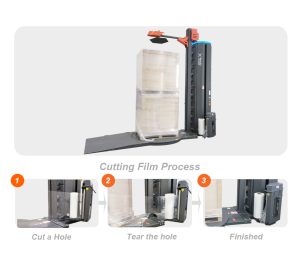

Automatic Cutting Film
After finishing wrapping the pallet, our pallet stretch wrapper will cut the film automatically. Workers do not need to cut the film with tools, which is very helpful for users.
Multi-layer Function
This function can set different wrapping circles and wrapping forces at any height that you want. And the maximum Stretch Pallet Wrapping Machine can set is 9 layers for the pallet. Normal machine’s wrapping force from the bottom to the top is the same, and it cannot stop during wrapping to reinforce the wrapping force. Such a function completely avoids these problems.

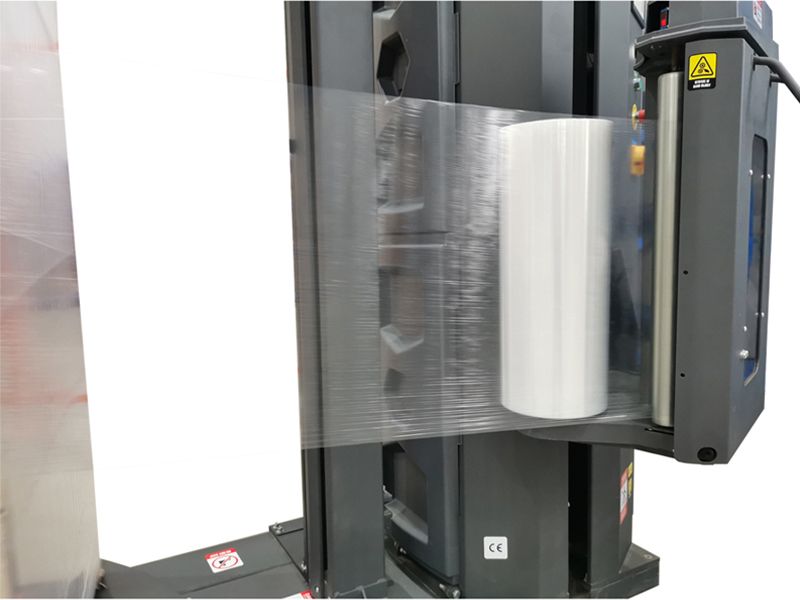

Carriage with power pre-stretch system – Saving Film Consumption
Maximum up to 380% pre-stretch rate
Minimum the value of each meter of stretch film
Standard constant releasing film
Fixed-pointed wrapping quantitative use film
Film tension adjusted by the touch screen panel
Advanced Safety Technology
1. Safety device under film carriage to protect the foot or head of the operator
2. Transparent board makes it easy to find problem without opening the door
3. Up and down belt deviation and demaged alarm system. Alarming in time to avoid carriage dropping down.
Better Components
- SIEMENS: PLC
- SIEMENS: Inverter
- SICK: proximity switch
- AUTONICS: photoelectric switch
- WEIDMULLER: terminal block
- X-Line: Inverter
- OMRON 24DC: supply

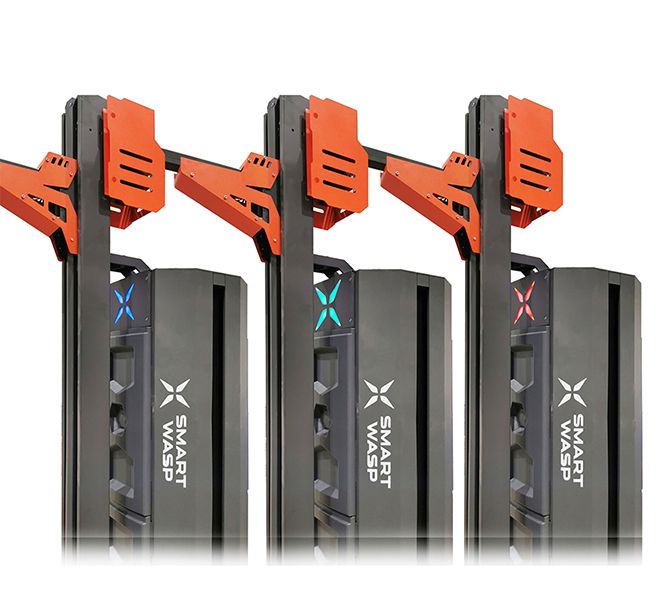

Intelligent Operation System
1. X1 with LED indicator on machine
Ready for work–Blue color
During working–Green color
Alarm–Red color
2. Touch screen guide the user how to operate machine.
If alarm appears, toch screen will show you how to solve problem.
